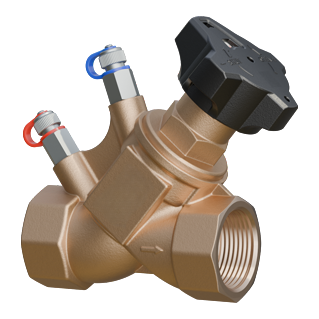

HJF series static balancing valve is used for balancing hydraulic regime in liquid pipe. It has excellent function of modulating, cutting off, aperture displaying and locking. It is able to save heat and electricity when used in heating and cooling system.

Parameters:

Caliber: 2 port chilled/hot water DN15…DN500 1/ 2"~20"
Operating temperature: DN15~DN50：-25...+120℃
　　　　 　　　　　　　DN50~DN500：-25...+150℃
Operating pressure: 16Bar / 25Bar
Valve body: DN15~DN50：brass
　　　　　DN50~DN500：ductile iron

Valve core: DN15~DN50：brass

　　　　　DN50~DN500：stainless steel

Valve stem:DN15~DN50：brass

　　　　　DN50~DN500：stainless steel
