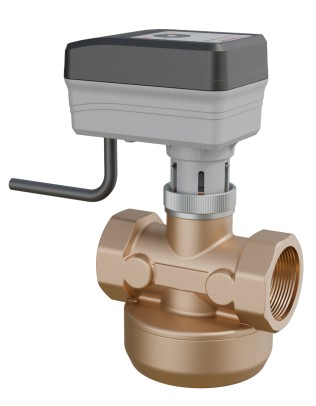

Pressure Independent Control Valve with diaphragm stucture and adjustable flow rate combines the advantages of dynamic balancing valve and two-way electric valve. Flow rate can flexibly be set which shows obvious advantages in changeable flow system when load fluctuates greatly.

Parameters:

Thread connected with pipe: ISO7/1
Caliber: 2 port chilled/hot water DN15-DN32   1/2"~1"
Power supply: 24V/220V
Operating temperature: -10...+120℃
Operating pressure: 16Bar  /  25Bar
Valve body: brass
